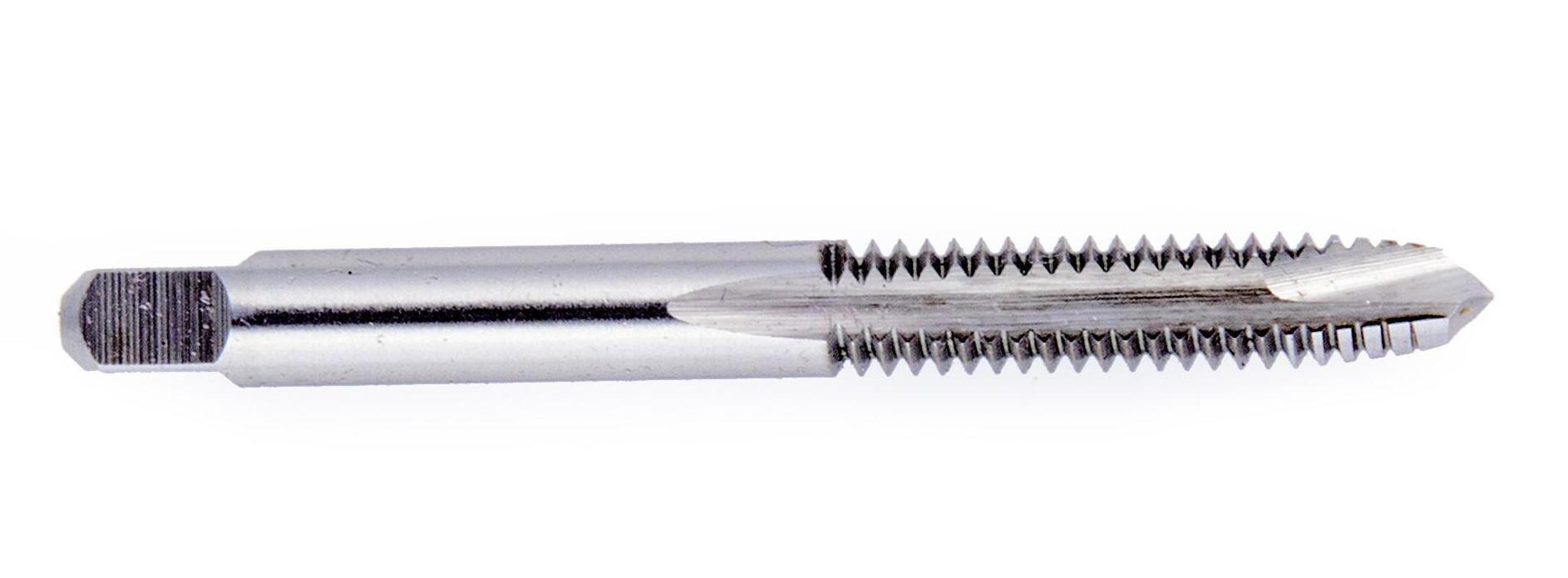

Picture of Regal 008292AS No.12-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Regal 008292AS No.12-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Part Number: REG008292AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175469
Vendor: Sussex Tool and Supply
$0.00
REGAL No.12x24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H1/GH1 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2200 5.59MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.12
Thread Limit H1/GH1
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1724 4.38MM - 0.1835 4.66MM
Tap Square 0.1650
Tap Chamfer 4.0P-5.0P
