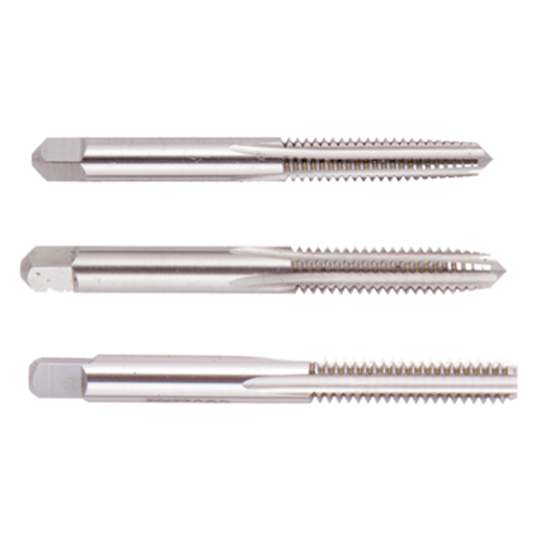

REGAL 008221AS No.10-24.00TPI Over Sized Plug Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008221AS
Delivery date: 3-5 days
$7.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#20, Material#22, Material#2, Material#8, Material#16
Package Size 1
Application Plug Tapping, Tapping, Through Hole Tapping, Over Sized Tapping
Performance Rating General Performance
Additional Key Information 1 Tapping
Shipping State Illinois
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Thread Type NC/UNC
Shank/Pilot Dia 0.1940 4.93MM
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Flutes/Inserts 3
Flute Direction R - Right
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Thread Size No.10
Machine Side TAP0.152x0.194
Machine Side Connection Type Tap Collet
Tap Style Over Sized Plug
Tap Chamfer 4.0P-5.0P
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Limit GH7 +0.0035
Tap Square 0.1520
Tap Type Plug
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
