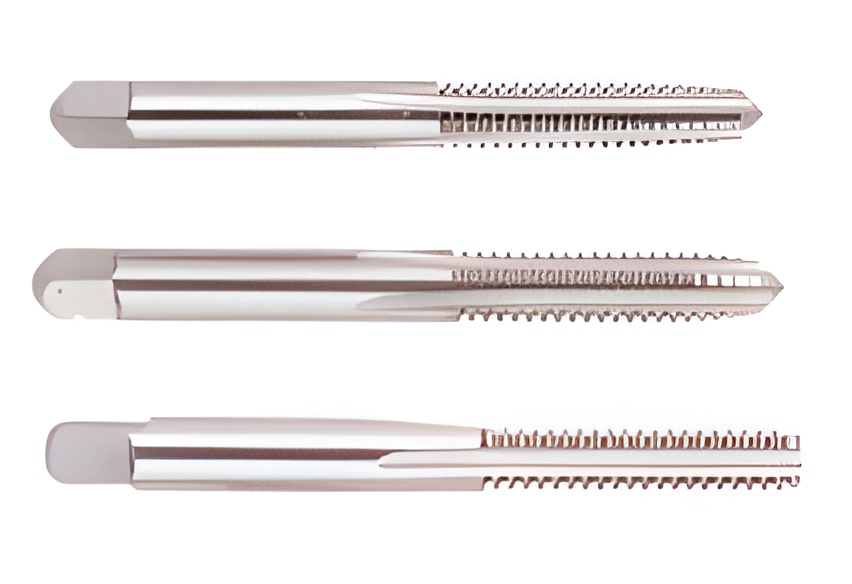

Picture of Regal 008134AS No.5-44.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 008134AS No.5-44.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG008134AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175010
Vendor: Sussex Tool and Supply
$0.00
REGAL No.5x44.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 44.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.5
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1012 2.57MM - 0.1071 2.72MM
Tap Square 0.1100
Tap Chamfer 1.0P-2.0P
