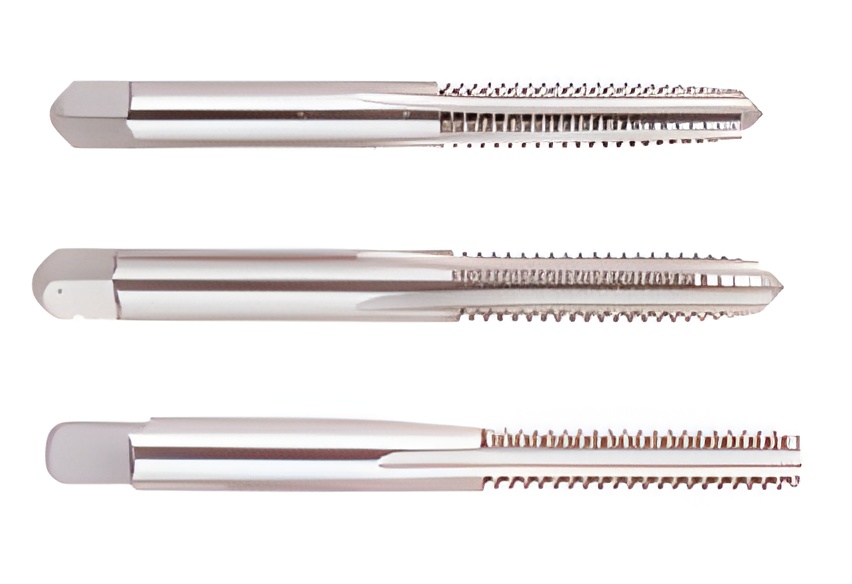

Picture of Regal 008015AS No.1-64.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Regal 008015AS No.1-64.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Part Number: REG008015AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1174942
Vendor: Sussex Tool and Supply
$0.00
REGAL No.1x64.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 1.6880 42.88MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 64.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.1
Thread Limit H3/GH3
Tap Style Hand Tap
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0567 1.44MM - 0.0606 1.54MM
Tap Square 0.1100
Tap Chamfer 4.0P-5.0P
