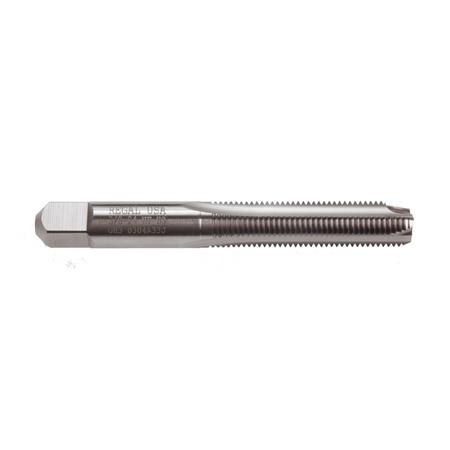

Picture of Regal 008006AS No.0-80.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Regal 008006AS No.0-80.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG008006AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175405
Vendor: Sussex Tool and Supply
$0.00
REGAL No.0x80.00TPI Cut Spiral Point Bottoming 1.0P-2.0P HSS Uncoated H1/GH1 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Taping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 1.6250 41.28MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 80.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.0
Thread Limit H1/GH1
Tap Style Cut Spiral Point
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0469 1.19MM - 0.0500 1.27MM
Tap Square 0.1100
Tap Chamfer 1.0P-2.0P
