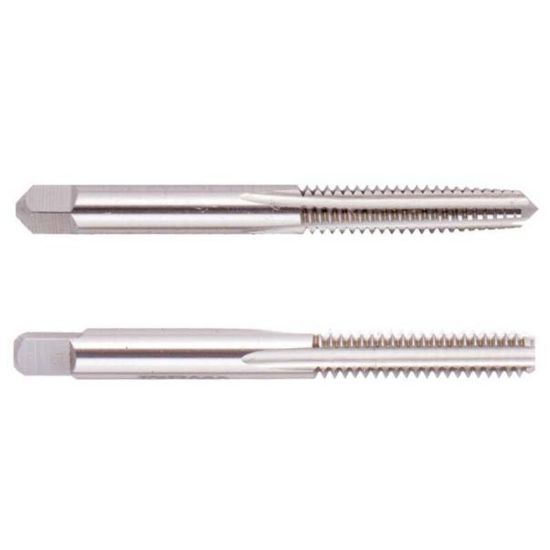

REGAL 007016AS No.2-56.00TPI STI Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG007016AS
Delivery date: 3-5 days
$16.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application STI Thread Insert Tapping, Through Hole Tapping, Plug Tapping, Tapping
Shipping State Illinois
Material # Material#15, Material#25, Material#18, Material#2, Material#8
Sold by Pieces 1
Additional Key Information 1 Tapping
Performance Rating General Performance
Uncategorized
Made In USA Yes
Dimensional Specifications
Drill Range 0.0906 2.30MM
Tool Material Steel
Tap Square 0.1100
Tap Style STI
Machine Side TAP0.110x0.140
Shank/Pilot Dia 0.1410 3.58MM
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tap Type Plug
Thread Size No.2
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Length Type Standard
Dimension Standard ANSI/ANSI
Overall Len 1.8750 47.63MM
Thread Pitch 56.00TPI
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Contractor Yes
Mold Yes
Energy Yes
