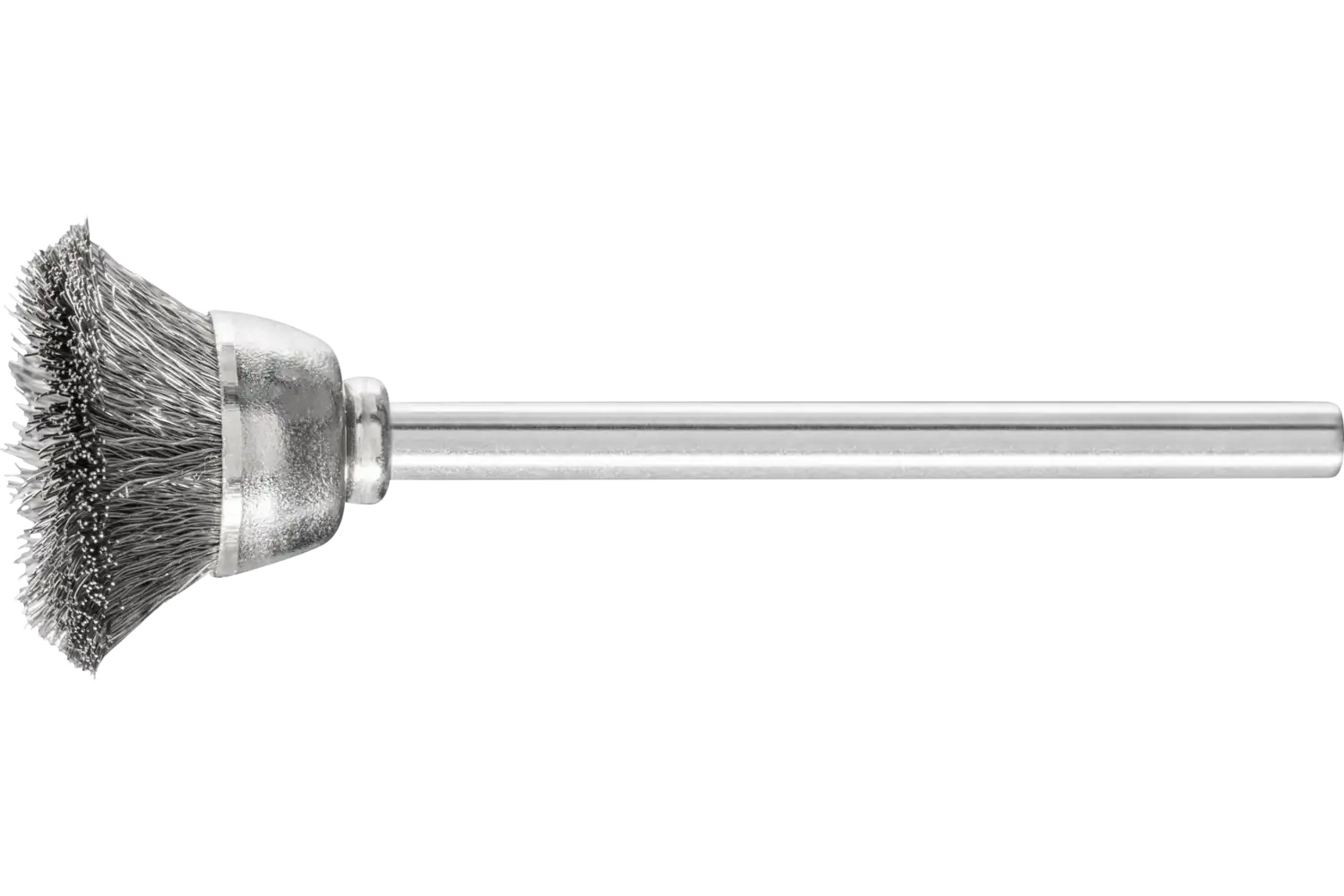

Pferd Miniature Cup Brush 9/16" Dia. .005 Stainless Steel

Part Number: PFE83240
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1566718
$7.20
This product has a minimum quantity of 36

Description

Designed for light brushing such as deburring, cleaning and polishing. Ideal for brushing on small surfaces due to face-down use with the entire brush face applied to the workpiece. PFERD offers a wide range of miniature brushes for precision work. These can be used on flexible shaft drives, micro motors or electric grinders. In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F.
Products specifications
Attribute name Attribute value
General Information
Shipping State WISCONSIN
Made In USA NO
Brush Type Cup Brush
Operation Type Paint stripping, Removing heat discolouration, Deburring, Derusting, Removing oxide layers, Roughening, Cleaning
Abrasive Use Straight Grinder
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Shank/Pilot Dia 0.1250 3.17MM - 1/8
Cutting Width 0.1250 3.18MM
Useable Dia 0.5625
Abrasive Stem Dia 1/8
Wire Length 1/4"
Performance & Capacity
Max RPM 25000, 25000
Materials & Finish
Abrasive Material Steel
