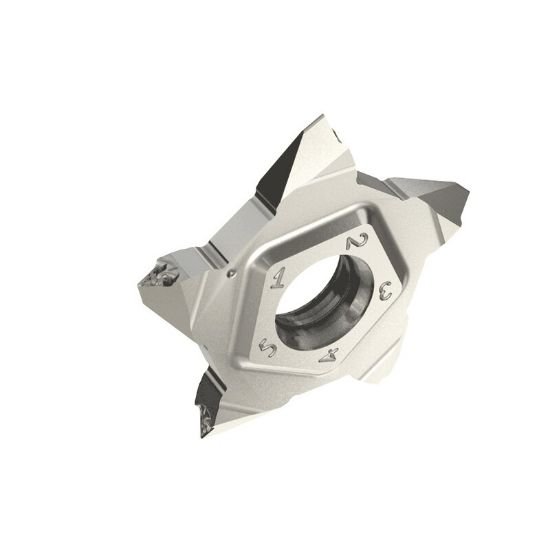

Picture of PENTA 24A-WT-0.15 IC908 Iscar 6003317 Groove Threading,Threading Insert 0.0060 0.15mm Radius 8.00TPI - 24.00TPI Whitworth BSW/BSF/BSP

PENTA 24A-WT-0.15 IC908 Iscar 6003317 Groove Threading,Threading Insert 0.0060 0.15mm Radius 8.00TPI - 24.00TPI Whitworth BSW/BSF/BSP

Part Number: ISC6003317 ISO: PENTA 24A-WT-0.15 IC908 ANSI:PENTA 24A-WT-0.15 IC908
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1025786
Vendor: Sussex Tool and Supply
$49.47
This product has a minimum quantity of 10

Description

ISCAR 6003317 Pentagonal Groove Threading Positive TiAlN A tough submicron grain size substrate with a PVD coating, recommended for general use for diverse operations on materials such as steels, alloy steels, austenitic stainless steel and high temperature alloys at a wide range of cutting speeds. Features high wear resistance and chipping durability.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style PE
Insert Shape/Cutter Pocket Shape Pentagonal
Insert Type Positive
Hand Neutral
Thread Type Whitworth BSW/BSF/BSP
Inter/Extern Int / Ext
Insert Type/Oriantation Proprietary
Full Or Partial Profile Partial Profile
Dimensions & Sizing
Insert Size Ic 24
Thread Pitch 8.00TPI - 24.00TPI
Threed Teeth 1
Geometry & Angles
Corner Radius 0.0060 0.15MM
Performance & Capacity
Cut Rating Stainless Steel, Ductile Iron, <48HRC Steel, Gray Iron, High Temp
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IC908
