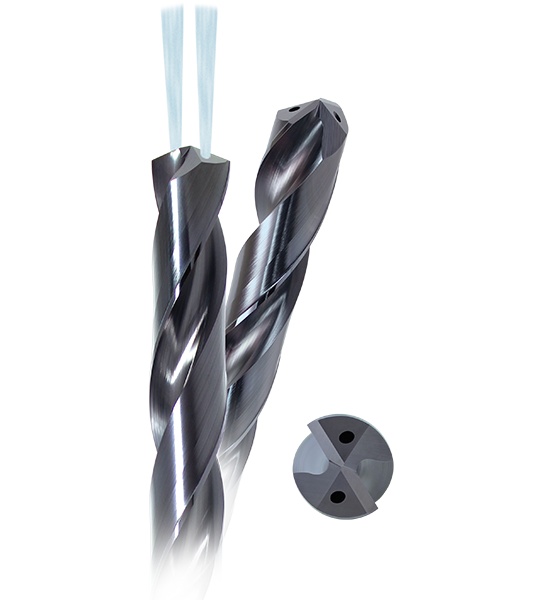

Picture of PCT SXC2005950T9 Deep Hole Over 8Xd Coolant Thru 135° TiAlN 0.234 Diameter Cylindrical 0.236 Shank 8.858 OAL 2 Flute 7.087 Flute Length 20.0XD

PCT SXC2005950T9 Deep Hole Over 8Xd Coolant Thru 135° TiAlN 0.234 Diameter Cylindrical 0.236 Shank 8.858 OAL 2 Flute 7.087 Flute Length 20.0XD

Part Number: PRESXC2005950T9
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1123820
Vendor: Sussex Tool and Supply
$373.20

Description

PCT SXC2005950T9 Deep Hole Over 8Xd Drill Shank 0.2362 TiAlN 0.2344 5.95MM - 15/64Drill Dia 7.0870 180.01MM 20.0XD Flute Length Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 8.8583 225.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2344 5.95MM - 15/64
Flute Length 7.0870 180.01MM
Dia Deep 20.0x Dia
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating <53HRC Steel
Cut Dia Min 0.2344 5.95MM - 15/64
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
