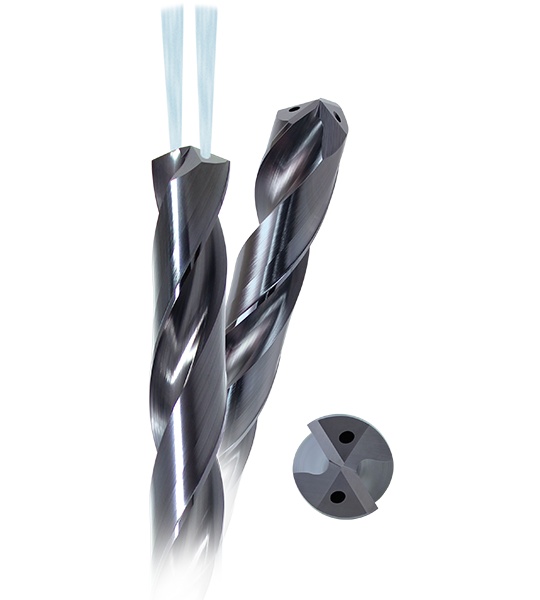

Picture of PCT SXC2005560T9 Deep Hole Over 8Xd Coolant Thru 135° TiAlN 0.218 Diameter Cylindrical 0.236 Shank 8.070 OAL 2 Flute 6.299 Flute Length 20.0XD

PCT SXC2005560T9 Deep Hole Over 8Xd Coolant Thru 135° TiAlN 0.218 Diameter Cylindrical 0.236 Shank 8.070 OAL 2 Flute 6.299 Flute Length 20.0XD

Part Number: PRESXC2005560T9
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1123816
Vendor: Sussex Tool and Supply
$373.20

Description

PCT SXC2005560T9 Deep Hole Over 8Xd Drill Shank 0.2362 TiAlN 0.2188 5.56MM - 7/32Drill Dia 6.2990 159.99MM 20.0XD Flute Length Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 8.0709 205.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.2188 5.56MM - 7/32
Flute Length 6.2990 159.99MM
Dia Deep 20.0x Dia
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating <53HRC Steel
Cut Dia Min 0.2188 5.56MM - 7/32
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
