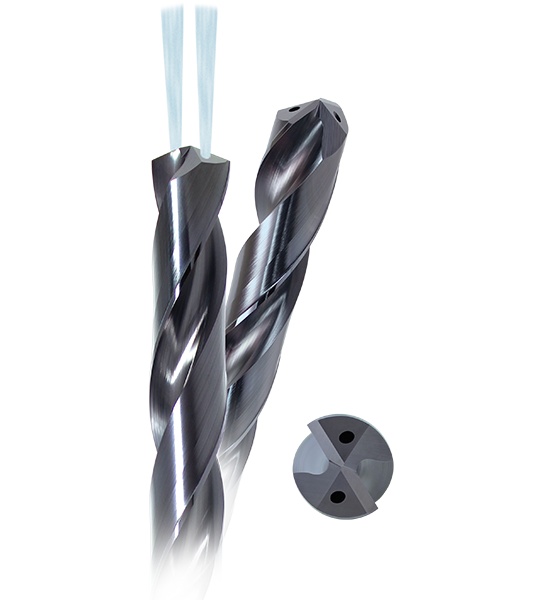

Picture of PCT SXC1606350T9 Deep Hole Over 8Xd Coolant Thru 135° TiAlN 0.250 Diameter Cylindrical 0.315 Shank 5.748 OAL 2 Flute 4.252 Flute Length 16.0XD

PCT SXC1606350T9 Deep Hole Over 8Xd Coolant Thru 135° TiAlN 0.250 Diameter Cylindrical 0.315 Shank 5.748 OAL 2 Flute 4.252 Flute Length 16.0XD

Part Number: PRESXC1606350T9
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1123744
Vendor: Sussex Tool and Supply
$343.01

Description

PCT SXC1606350T9 Deep Hole Over 8Xd Drill Shank 0.3150 TiAlN 0.2500 6.35MM - 1/4 - EDrill Dia 4.2520 108.00MM 16.0XD Flute Length Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.7480 146.00MM
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Flute Length 4.2520 108.00MM
Dia Deep 16.0x Dia
Geometry & Angles
Included Angle 135°
Performance & Capacity
Cut Rating <53HRC Steel
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
