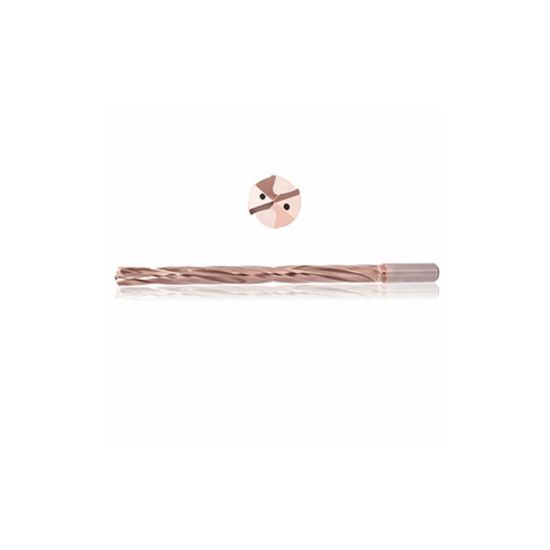

PCT AXC2506500T6 Deep Hole Over 8Xd Coolant Thru 135° ZrCN 0.421 Diameter Cylindrical 0.472 Shank 14.76 OAL 2 Flute 12.79 Flute Length 25.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PCT
SKU: PREAXC2506500T6
Delivery date: 3-5 days
$645.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

ZrCN has an excellent resistance against corrosion and abrasive wear, characterized by its high hardness, by its tribological properties and by its toughness.

Products specifications
Attribute name Attribute value
General Product Information
Additional Key Information 2 Coolant Thru
Package Size 1
Material # Material#20, Material23, Material#21, Material#22
Sold by Pieces 1
Application Drilling Deep Hole, Drilling Thru Coolant, Drilling
Additional Key Information 1 Carbide Drill
Additional Key Information 3 Deep Hole Over 8Xd
Shipping State California
Coating ZrCN
Uncategorized
Made In USA Yes
Dimensional Specifications
Dia Deep 25.0XD
Included Angle 135°
Cutter Dia 0.4219 10.72MM - 27/64
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Machine Side CYLINDRICAL0.4724
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Cut Rating Aluminum, Brass, Plastic, Copper
Cut Dia Min 0.4219 10.72MM - 27/64
Overall Len 14.7638 375.00MM
Flute Length 12.7950 324.99MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
