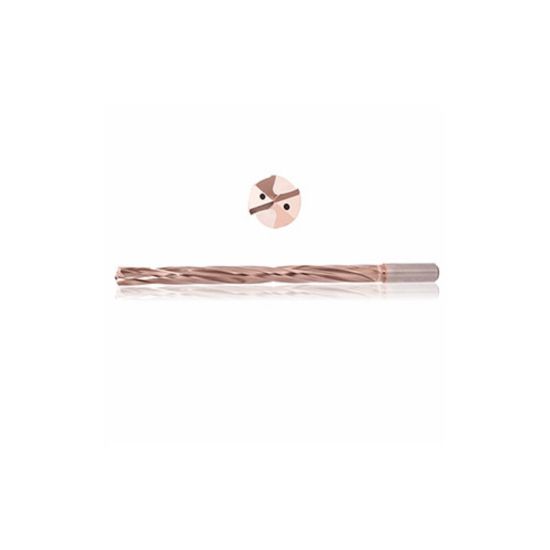

PCT AXC2004200T6 Deep Hole Over 8Xd Coolant Thru 135° ZrCN 0.196 Diameter Cylindrical 0.236 Shank 6.299 OAL 2 Flute 4.724 Flute Length 20.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PCT
SKU: PREAXC2004200T6
Delivery date: 3-5 days
$475.77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

ZrCN has an excellent resistance against corrosion and abrasive wear, characterized by its high hardness, by its tribological properties and by its toughness.

Products specifications
Attribute name Attribute value
General Product Information
Coating ZrCN
Material # Material#21, Material#22, Material23, Material#20
Additional Key Information 3 Deep Hole Over 8Xd
Shipping State California
Additional Key Information 1 Carbide Drill
Application Drilling, Drilling Thru Coolant, Drilling Deep Hole
Additional Key Information 2 Coolant Thru
Package Size 1
Sold by Pieces 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Overall Len 6.2992 160.00MM
Flutes/Inserts 2
Dia Deep 20.0XD
Cutter Dia 0.1969 5.00MM
Cut Dia Min 0.1969 5.00MM
Machine Side CYLINDRICAL0.2362
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Flute Length 4.7240 119.99MM
Cut Rating Aluminum, Brass, Plastic, Copper
Machine Side Connection Size 0.2362 6.00MM
Included Angle 135°
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
