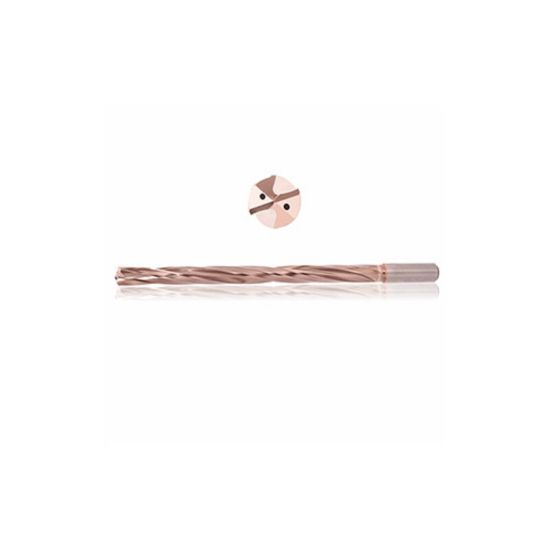

PCT AXC1211113T6 Deep Hole Over 8Xd Coolant Thru 135° ZrCN 0.437 Diameter Cylindrical 0.472 Shank 8.031 OAL 2 Flute 6.142 Flute Length 12.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PCT
SKU: PREAXC1211113T6
Delivery date: 3-5 days
$539.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

ZrCN has an excellent resistance against corrosion and abrasive wear, characterized by its high hardness, by its tribological properties and by its toughness.

Products specifications
Attribute name Attribute value
General Product Information
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Application Drilling Deep Hole, Drilling, Drilling Thru Coolant
Shipping State California
Material # Material#21, Material#20, Material#22, Material23
Additional Key Information 3 Deep Hole Over 8Xd
Additional Key Information 2 Coolant Thru
Coating ZrCN
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cut Rating Aluminum, Brass, Plastic, Copper
Flute Length 6.1420 156.01MM
Shank/Pilot Dia 0.4724 12.00MM
Included Angle 135°
Machine Side CYLINDRICAL0.4724
Machine Side Connection Size 0.4724 12.00MM
Overall Len 8.0315 204.00MM
Flutes/Inserts 2
Cutter Dia 0.4375 11.11MM - 7/16
Dia Deep 12.0XD
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4375 11.11MM - 7/16
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
