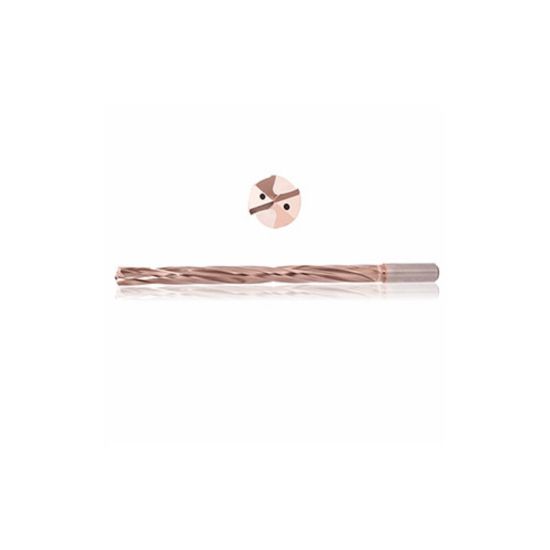

PCT AXC1208600T6 Deep Hole Over 8Xd Coolant Thru 135° ZrCN 0.338 Diameter Cylindrical 0.393 Shank 6.378 OAL 2 Flute 4.724 Flute Length 12.0XD

Need Assistance or Service? Please call 262-251-4020

Manufacturer: PCT
SKU: PREAXC1208600T6
Delivery date: 3-5 days
$393.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

ZrCN has an excellent resistance against corrosion and abrasive wear, characterized by its high hardness, by its tribological properties and by its toughness.

Products specifications
Attribute name Attribute value
General Product Information
Material # Material#21, Material23, Material#20, Material#22
Application Drilling, Drilling Thru Coolant, Drilling Deep Hole
Shipping State California
Additional Key Information 2 Coolant Thru
Coating ZrCN
Sold by Pieces 1
Additional Key Information 1 Carbide Drill
Additional Key Information 3 Deep Hole Over 8Xd
Package Size 1
Uncategorized
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.3386 8.60MM
Included Angle 135°
Cut Rating Aluminum, Brass, Plastic, Copper
Overall Len 6.3780 162.00MM
Dia Deep 12.0XD
Machine Side CYLINDRICAL0.3937
Cut Dia Min 0.3386 8.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flute Length 4.7240 119.99MM
Machine Side Connection Size 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
