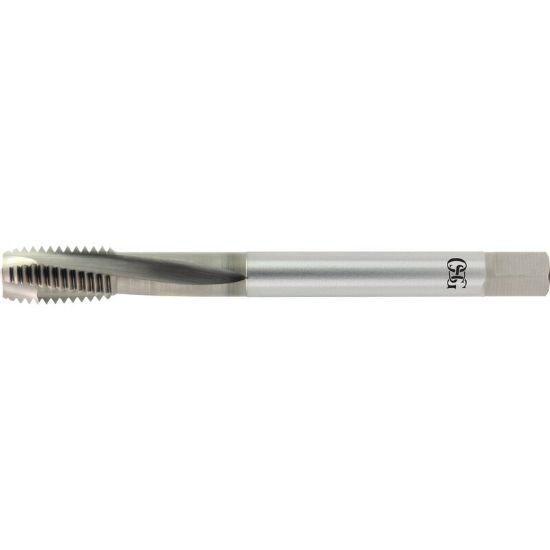

Picture of OSG 3350012135 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V TiAlN

OSG 3350012135 1/2-13.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V TiAlN

Part Number: OSG3350012135
Looking for alternatives…
Find a drill for this tap 1/2" × 13.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176888
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG 1/2"x13.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V TiAlN H5/GH5 NC/UNC Steel Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 3
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Square 0.2740
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE-V
Coating TiAlN
Standards & Identification
Dimension Standard DINSI
