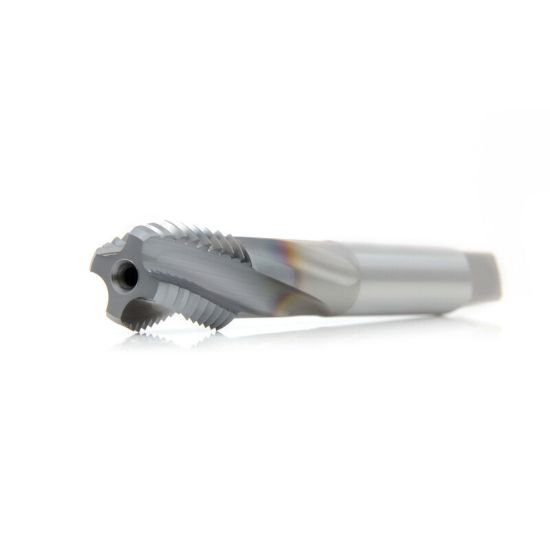

Picture of OSG 31704508 1-8.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V TiCN

OSG 31704508 1-8.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V TiCN

Part Number: OSG31704508

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176887
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 1"x8.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE-V TiCN H4/GH4 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE-V
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Coating TICN
Overall Length 6.2990 159.99MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1"
Thread Limit H4/GH4
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DINSI
Tap Drill Range 1.0335 26.25MM
Tap Square 0.6000
Tap Chamfer 2.5P-3.0P
