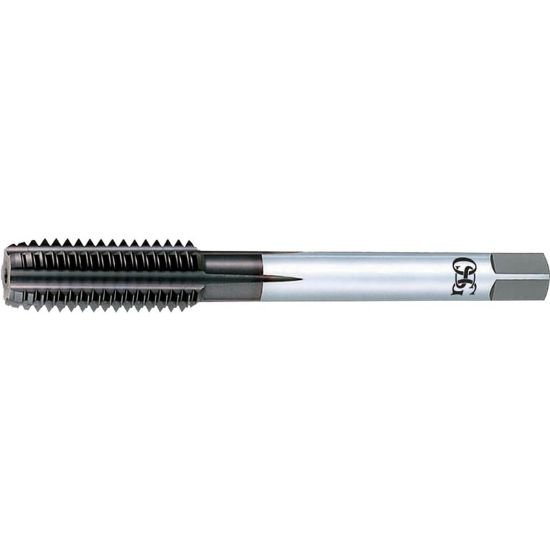

Picture of OSG 3110608 1/4-20.00TPI Cut Straight Flute Mod Bottom 4.5P-5.5P Carbide TiCN

OSG 3110608 1/4-20.00TPI Cut Straight Flute Mod Bottom 4.5P-5.5P Carbide TiCN

Part Number: OSG3110608

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176976
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 1/4"x20.00TPI Cut Straight Flute Mod Bottom 4.5P-5.5P Carbide TiCN 2B NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat Carbide
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, <65HRC Steel
Coating TICN
Overall Length 3.1560 80.16MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 5
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit 2B
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Tap Chamfer 4.5P-5.5P
