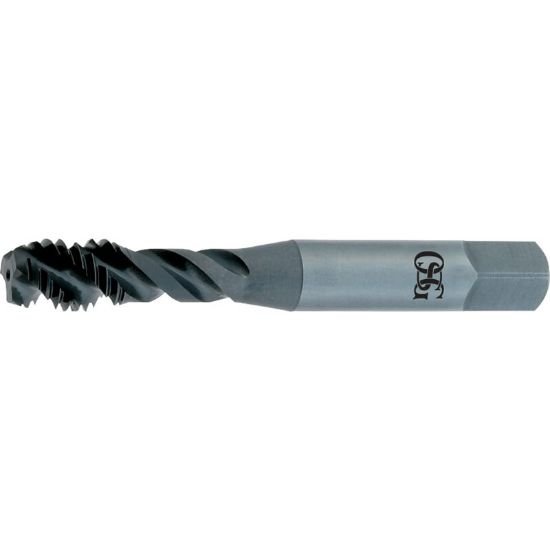

Picture of OSG 2992101 M12-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 2992101 M12-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG2992101

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176883
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M12x1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide D5 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 3.3465 85.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3669 9.32MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M12
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4213 10.70MM - 0.4343 11.03MM
Tap Square 0.2750
Tap Chamfer 2.5P-3.0P
