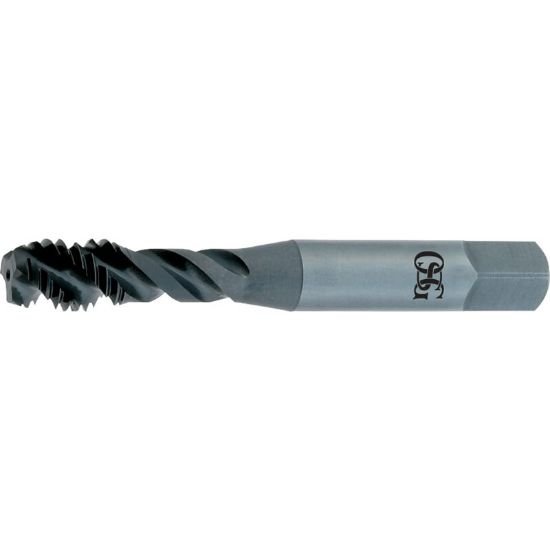

Picture of OSG 2991701 M10-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 2991701 M10-1.25mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG2991701
Looking for alternatives…
Find a drill for this tap M10 × 1.25MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176882
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG M10x1.25MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide D5 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 2.9134 74.00MM
Shank/Pilot Dia 0.3807 9.67MM
Flutes/Inserts 3
Thread Pitch 1.25MM
Thread Size M10
Tap Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
