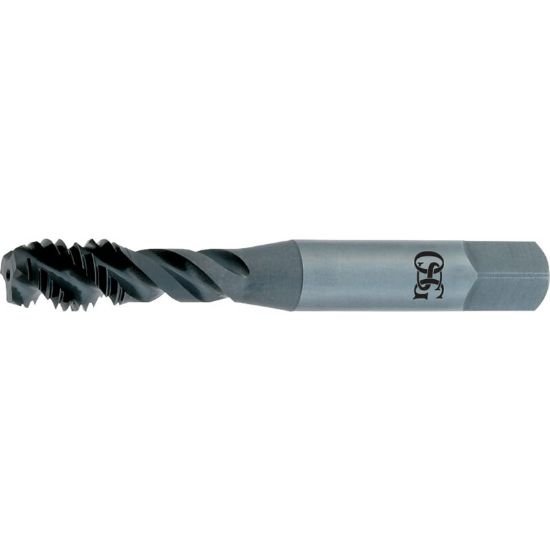

Picture of OSG 2991001 M6-1.00mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 2991001 M6-1.00mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG2991001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176972
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M6x1.00MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide D5 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.4803 63.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2547 6.47MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit D5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 2.5P-3.0P
