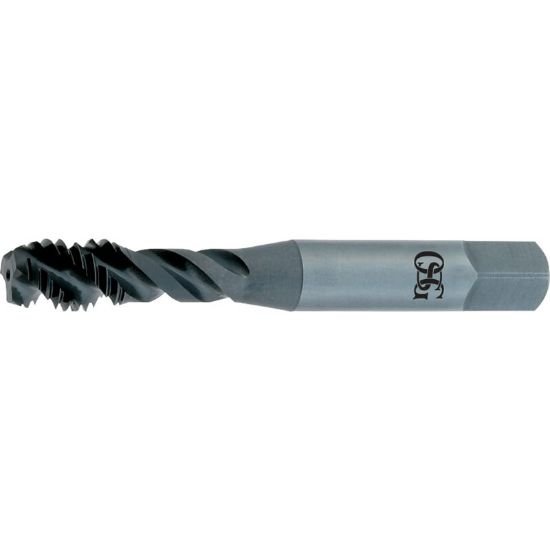

Picture of OSG 2990601 M4-0.70mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 2990601 M4-0.70mm Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG2990601

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176970
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M4x0.70MM Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide D4 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.1260 54.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1677 4.26MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M4
Thread Limit D4
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1310
Tap Chamfer 2.5P-3.0P
