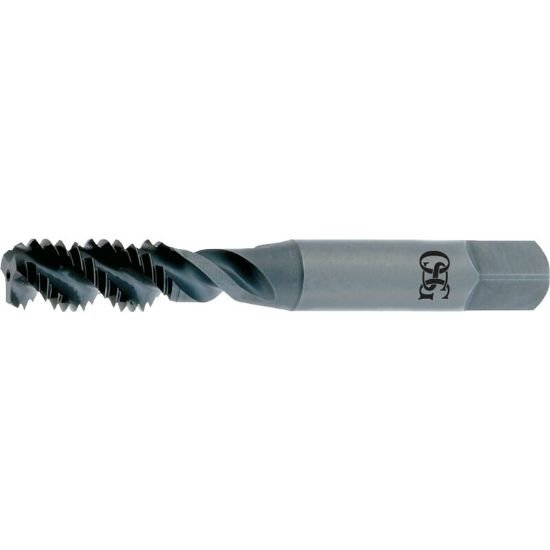

Picture of OSG 2988401 M8-1.25mm Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

OSG 2988401 M8-1.25mm Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Part Number: OSG2988401

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1177045
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M8x1.25MM Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide 2B Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.7180 69.04MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.25MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M8
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.2380
Tap Chamfer 1.5P-2.0P
