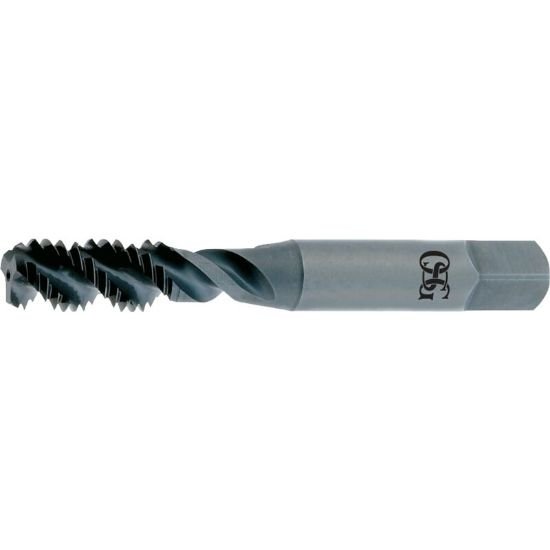

Picture of OSG 2988201 M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

OSG 2988201 M5-0.80mm Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Part Number: OSG2988201

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176969
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M5x0.80MM Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide 3B Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M5
Thread Limit 3B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Tap Chamfer 1.5P-2.0P
