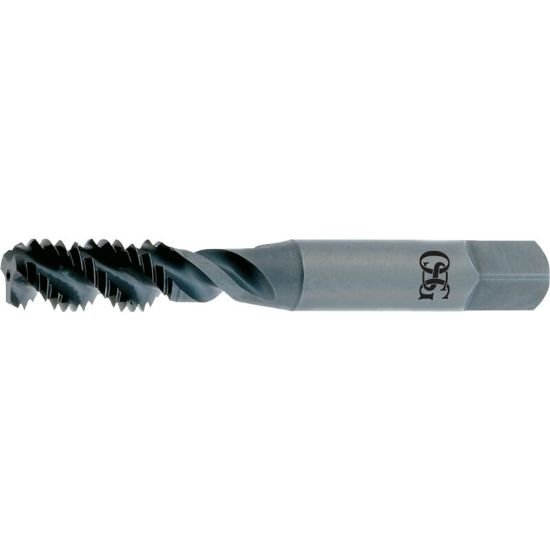

Picture of OSG 2986700 No.8-36.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated

OSG 2986700 No.8-36.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated

Part Number: OSG2986700
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176876

Description

OSG No.8x36.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated 2B NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 3
Thread Pitch 36.00TPI
Thread Size No.8
Tap Drill Range 0.1350 3.43MM - 0.1421 3.61MM
Tap Square 0.1310
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
