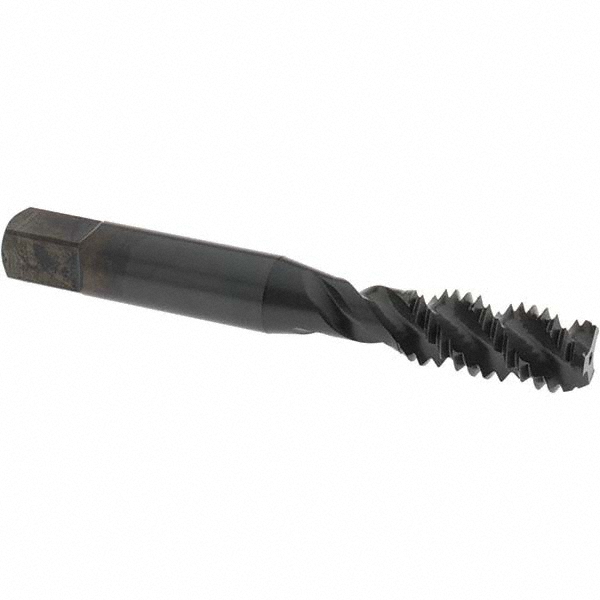

Picture of OSG 2986001 3/8-16.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

OSG 2986001 3/8-16.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Part Number: OSG2986001

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176874
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 3/8"x16.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide 2B NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.9370 74.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 16.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit 2B
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
