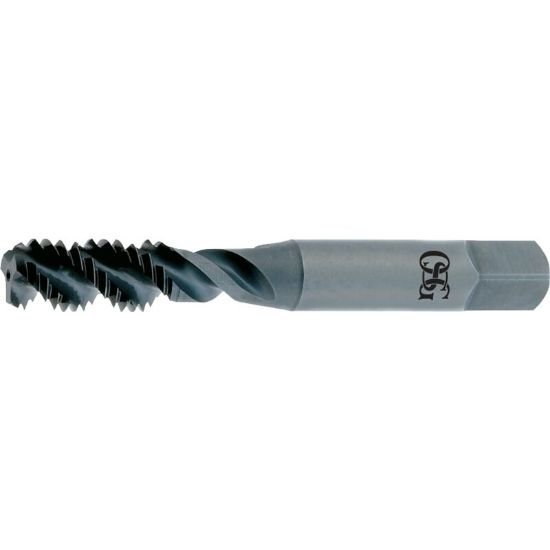

Picture of OSG 2985401 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

OSG 2985401 No.10-24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide

Part Number: OSG2985401
Looking for alternatives…
Find a drill for this tap No.10 × 24.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176870
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG No.10x24.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Steam Oxide 2B NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size No.10
Tap Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
