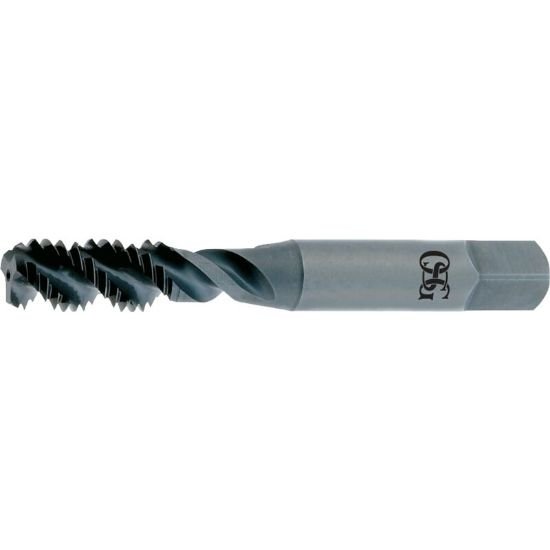

Picture of OSG 2985000 No.4-40.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated

OSG 2985000 No.4-40.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated

Part Number: OSG2985000
Looking for alternatives…
Find a drill for this tap No.4 × 40.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176867
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG No.4x40.00TPI Cut Spiral Flute Bottoming 1.5P-2.0P HSS Uncoated 2B NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 1.8750 47.63MM
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 2
Thread Pitch 40.00TPI
Thread Size No.4
Tap Drill Range 0.0902 2.29MM - 0.0957 2.43MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
