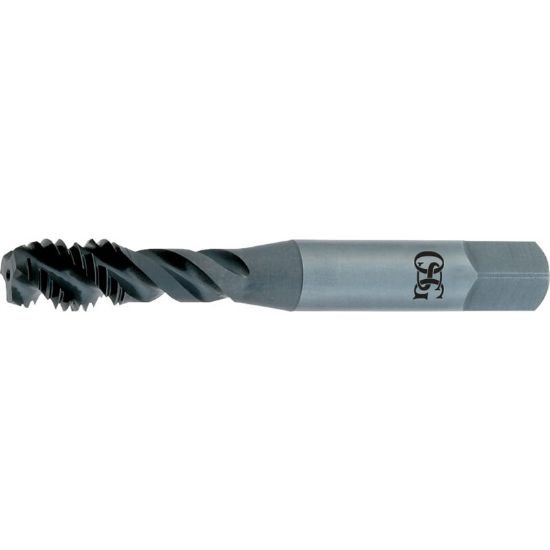

Picture of OSG 2944400 1-8.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

OSG 2944400 1-8.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated

Part Number: OSG2944400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176865
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 1"x8.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Uncoated H5/GH5 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 5.1250 130.18MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1"
Thread Limit H5/GH5
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 1.0335 26.25MM
Tap Square 0.6000
Tap Chamfer 2.5P-3.0P
