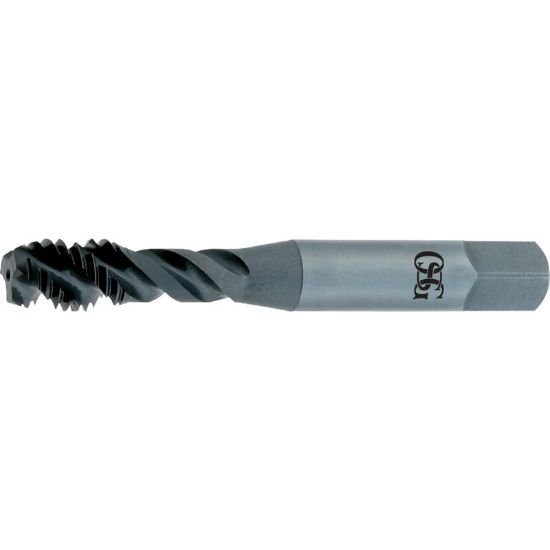

Picture of OSG 2933401 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 2933401 5/8-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG2933401

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176856
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 5/8"x18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide H3/GH3 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 3.8120 96.82MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Square 0.3590
Tap Chamfer 2.5P-3.0P
