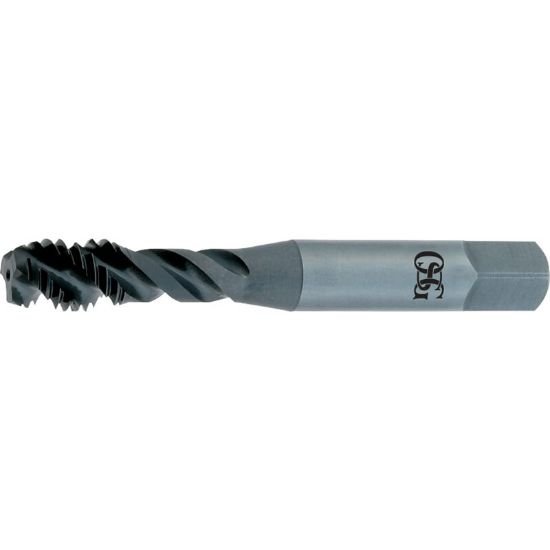

Picture of OSG 2913808 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN

OSG 2913808 No.10-32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN

Part Number: OSG2913808

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176966
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG No.10x32.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE TiCN H3/GH3 NF/UNF/UNEF Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TICN
Overall Length 2.3750 60.33MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.10
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1510
Tap Chamfer 2.5P-3.0P
