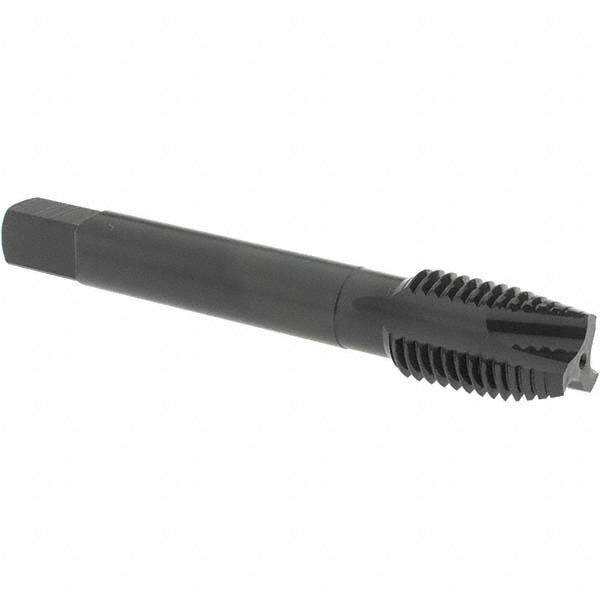

Picture of OSG 2892901 M16-2.00mm Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide

OSG 2892901 M16-2.00mm Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide

Part Number: OSG2892901

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176964
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M16x2.00MM Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide D7 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 3.7795 96.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4799 12.19MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 2.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M16
Thread Limit D7
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Tap Square 0.3600
Tap Chamfer 3.5P-4.5P
