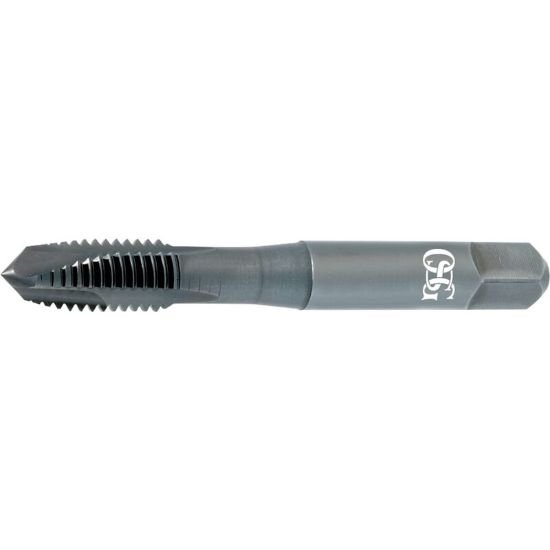

Picture of OSG 2890808 M5-0.80mm Cut Spiral Point Plug 3.5P-4.5P HSSE TiCN

OSG 2890808 M5-0.80mm Cut Spiral Point Plug 3.5P-4.5P HSSE TiCN

Part Number: OSG2890808

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176961
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M5x0.80MM Cut Spiral Point Plug 3.5P-4.5P HSSE TiCN D4 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating TICN
Overall Length 2.3622 60.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1937 4.92MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 0.80MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M5
Thread Limit D4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Tap Chamfer 3.5P-4.5P
