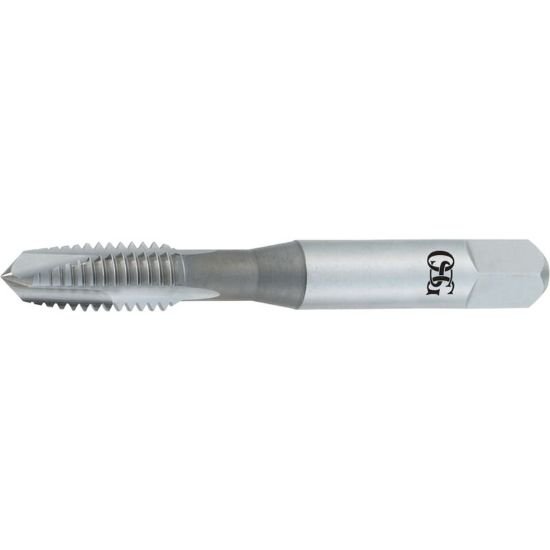

Picture of OSG 2885505 No.10-32.00TPI Cut Spiral Point Plug 4.5P-5.5P HSS TiN

OSG 2885505 No.10-32.00TPI Cut Spiral Point Plug 4.5P-5.5P HSS TiN

Part Number: OSG2885505
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176960

Description

OSG No.10x32.00TPI Cut Spiral Point Plug 4.5P-5.5P HSS TiN 2B NF/UNF/UNEF Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.5P-5.5P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 2
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1575 4.00MM - 0.1654 4.20MM
Tap Square 0.1510
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit 2B
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
