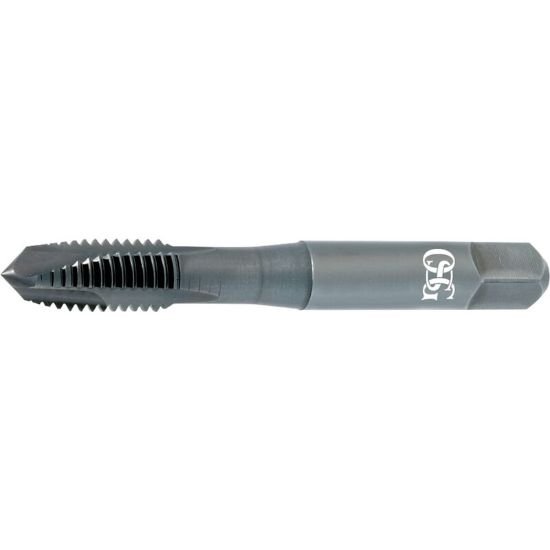

Picture of OSG 2831801 3/8-24.00Tpi Cut Spiral Point Plug 3.5P-4.5P HSSe Steam Oxide

OSG 2831801 3/8-24.00Tpi Cut Spiral Point Plug 3.5P-4.5P HSSe Steam Oxide

Part Number: OSG2831801

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1001976
Vendor: Sussex Tool and Supply
$0.00

OSG tap with cut spiral point 3 eighth inch 24 TPI right flute steam oxide coating for NF UNF UNEF thread types. Tap collet connection TAP0.286x0.381. Made in USA no. Tool material steel.

Key Details

Materials & Finish

  • Coating: Steam Oxide
  • Tool Material: Steel

Thread & Fittings

  • Thread Type: NF/UNF/UNEF
  • Machine Side (Toolpost) Connection Type: Tap Collet
  • Machine Side (Toolpost): TAP0.286x0.381

Grades & Coatings

  • Alternate Description: OSG 3/8"x24.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide H3/GH3 NF/UNF/UNEF

Other Details

  • Brand: OSG
  • Shipping State: ILLINOIS
  • Made In Usa: No
  • Flute Direction: Right
  • Type Of Tool: Tap

Technical Overview

What It Does

Cut spiral point plug for threading. Used in tapping operations. Suitable for steam oxide coated steel tools.

Composition

Steel, steam oxide coating, HSSe material.

Typical Uses

Tapping 3/8"x24.00TPI threads. Fits tap collet TAP0.286x0.381. Works with NF/UNF/UNEF thread types.

Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Cutter Type Taping
Made In USA No
Cutting Edge Definition High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.
Cutting Edge Material HSSE
Tool Material Steel
Machine Side (Toolpost) TAP0.286x0.381
Machine Side (Toolpost) Connection Type Tap Collet
Overall Length 2.9370 74.60MM
Shank Or Pilot Diameter 0.3800 9.65MM
Coolant Thru Non Coolant
Coating Steam Oxide
Flutes Or Inserts 3
Type of Tool Tap
Length Type Standard
Performance Rating General Performance
Thread Pitch 24.00TPI
Thread Type NF/UNF/UNEF
Flute Direction Right
Thread Size 3/8"
Tap Style Cut Spiral Point
Tap Type Plug
Thread Limit H3/GH3
Dimension Standard ANSI/ANSI
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2850
Tap Chamfer 3.5P-4.5P
