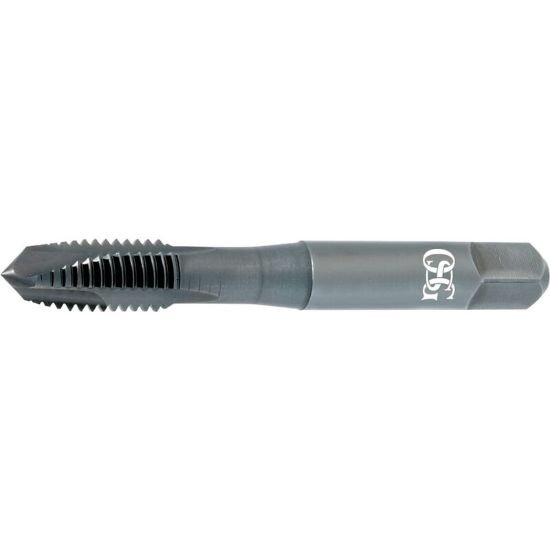

Picture of OSG 2818101 No.8-32.00TPI Over Sized Plug Plug 3.5P-4.5P HSSE Steam Oxide

OSG 2818101 No.8-32.00TPI Over Sized Plug Plug 3.5P-4.5P HSSE Steam Oxide

Part Number: OSG2818101

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176808
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG No.8x32.00TPI Over Sized Plug Plug 3.5P-4.5P HSSE Steam Oxide D11 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Coating Steam Oxide
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1670 4.24MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit D11
Tap Style Over Sized Plug
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Tap Chamfer 3.5P-4.5P
