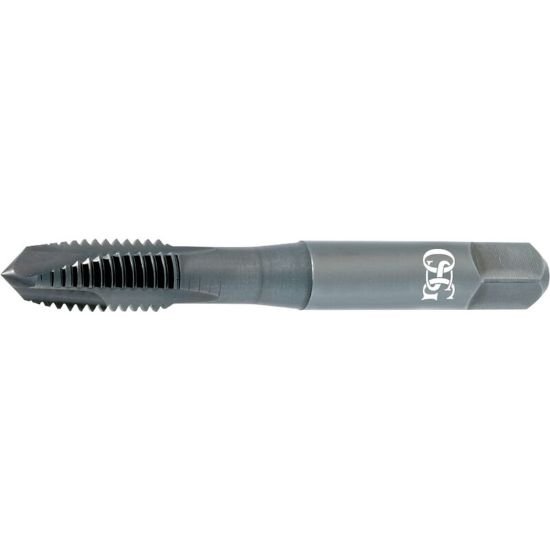

Picture of OSG 2817901 No.8-32.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide

OSG 2817901 No.8-32.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide

Part Number: OSG2817901
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176950

Description

OSG No.8x32.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide H6/GH6 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.5P-4.5P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.1670 4.24MM
Flutes/Inserts 3
Thread Pitch 32.00TPI
Thread Size No.8
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H6/GH6
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
