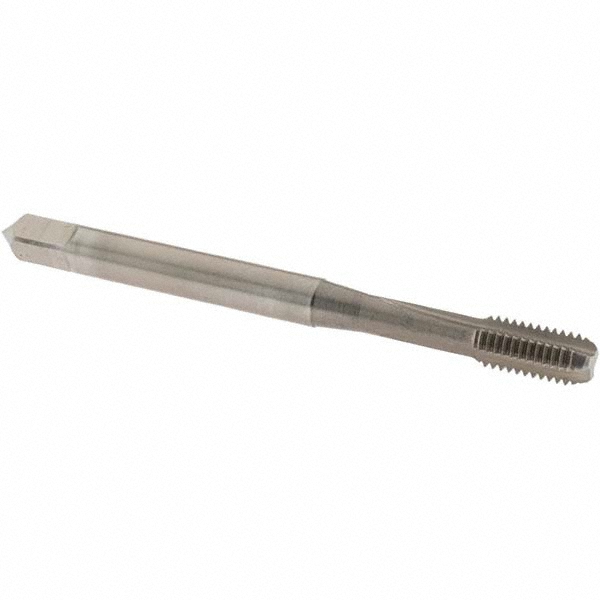

Picture of OSG 2410603 M5-0.80mm Cut Straight Flute Bottoming 1.5P-2.0P HSSE Nitride

OSG 2410603 M5-0.80mm Cut Straight Flute Bottoming 1.5P-2.0P HSSE Nitride

Part Number: OSG2410603
Looking for alternatives…
Find a drill for this tap M5 × 0.80MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176949
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG M5x0.80MM Cut Straight Flute Bottoming 1.5P-2.0P HSSE Nitride D5 Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Straight Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Dimensions & Sizing
Overall Length 2.3622 60.00MM
Shank/Pilot Dia 0.1937 4.92MM
Flutes/Inserts 3
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.2520
Performance & Capacity
Cut Rating Graphite, Aluminum, Brass, Plastic
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride
Standards & Identification
Dimension Standard ANSI/ANSI
