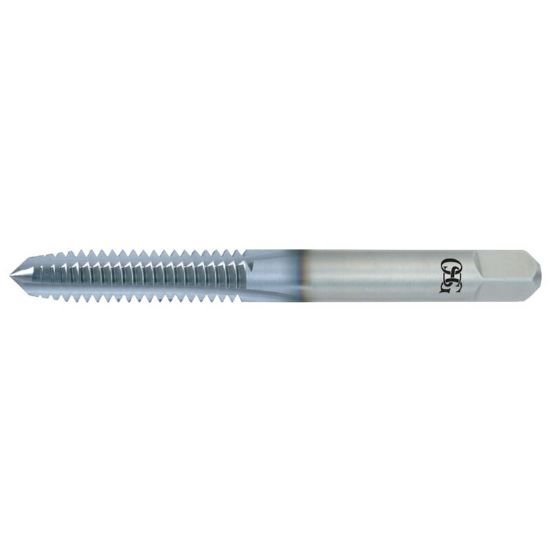

Picture of OSG 1971001 M6-1.00mm Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide

OSG 1971001 M6-1.00mm Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide

Part Number: OSG1971001
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1177029

Description

OSG M6x1.00MM Cut Spiral Point Plug 3.5P-4.5P HSS Steam Oxide D5 Metric Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.5P-4.5P
Dimensions & Sizing
Overall Length 2.4803 63.00MM
Shank/Pilot Dia 0.2547 6.47MM
Flutes/Inserts 4
Thread Pitch 1.00MM
Thread Size M6
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
