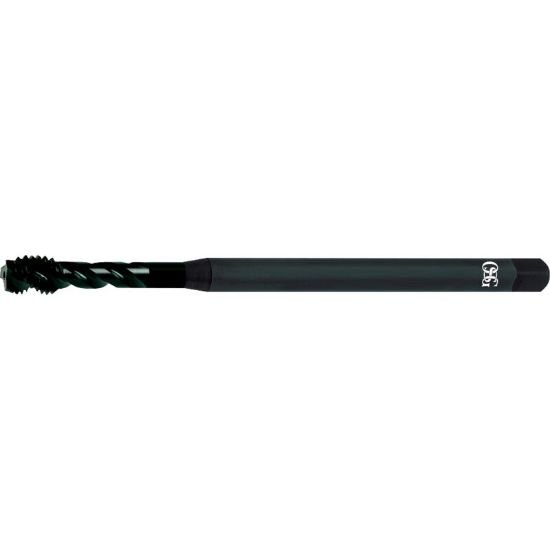

Picture of OSG 1767901 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide Pulley Long

OSG 1767901 1/4-20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide Pulley Long

Part Number: OSG1767901

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176791
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 1/4"x20.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 20.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1/4"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/4"
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Tap Chamfer 2.5P-3.0P
