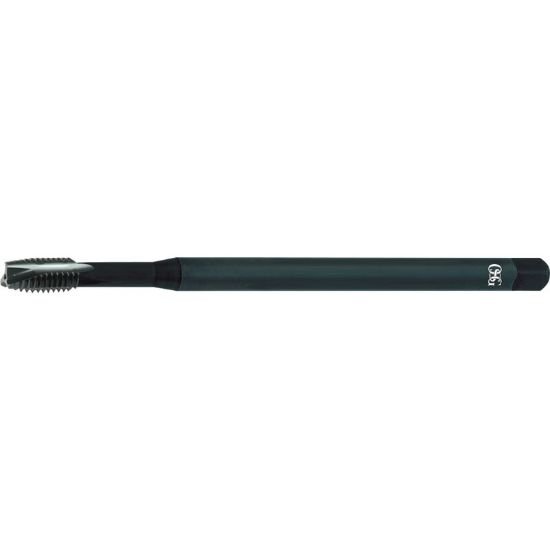

Picture of OSG 1765601 5/8-11.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide Pulley Long

OSG 1765601 5/8-11.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide Pulley Long

Part Number: OSG1765601

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176790
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 5/8"x11.00TPI Cut Spiral Point Plug 3.5P-4.5P HSSE Steam Oxide H4/GH4 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, High Temp
Coating Steam Oxide
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 11.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/6"
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3590
Tap Chamfer 3.5P-4.5P
