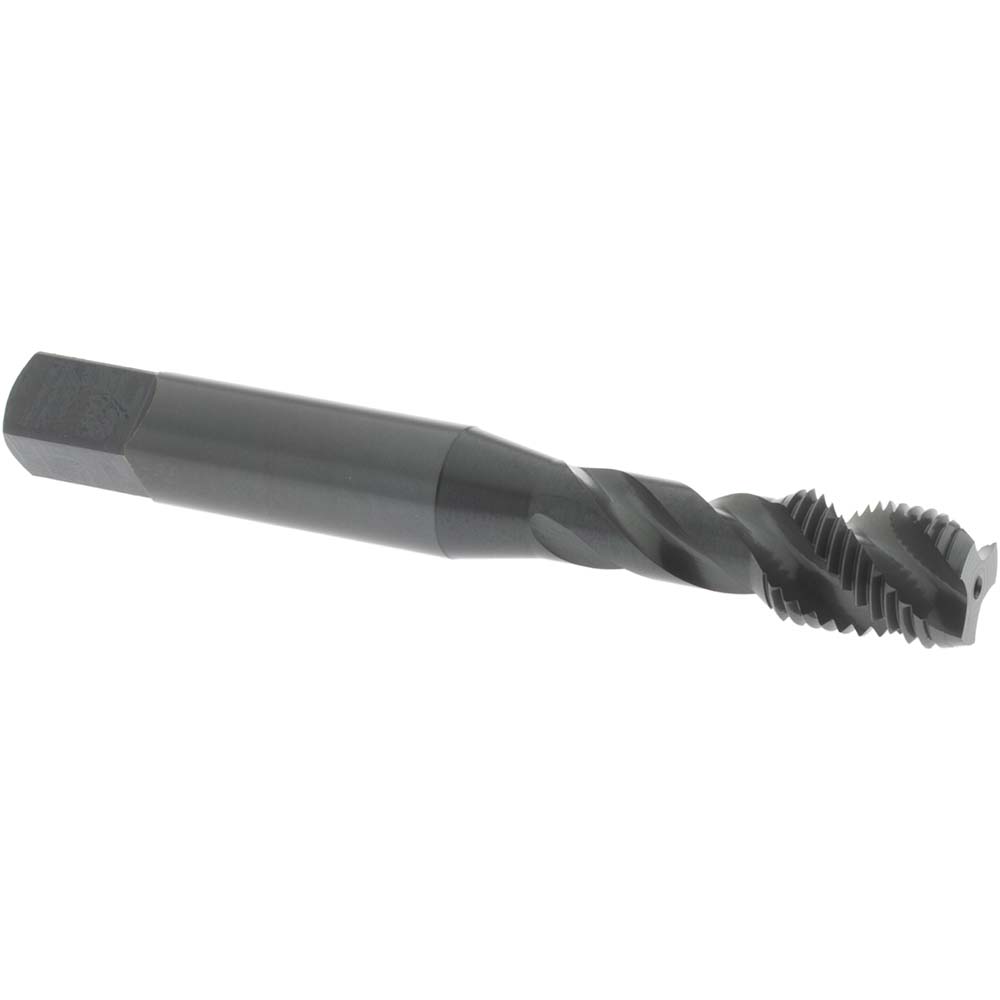

Picture of OSG 1762901 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 1762901 3/8-24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG1762901
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176938

Description

OSG 3/8"x24.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide H5/GH5 NF/UNF/UNEF Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P-3.0P
Dimensions & Sizing
Overall Length 2.9370 74.60MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 3
Thread Pitch 24.00TPI
Thread Size 3/8"
Tap Drill Range 0.3315 8.42MM - 0.3421 8.69MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
