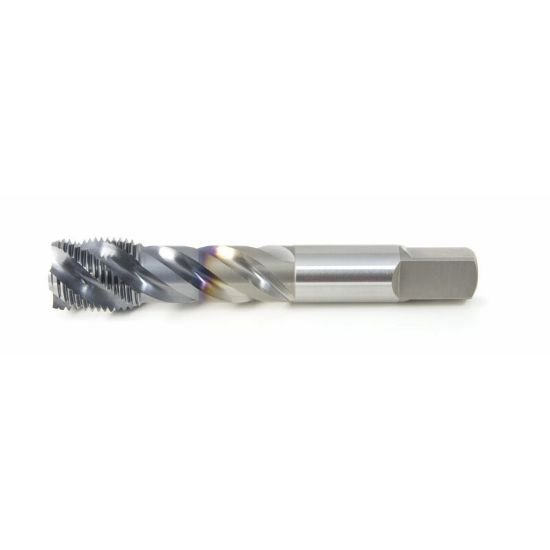

Picture of OSG 1732801 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

OSG 1732801 5/16-18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide

Part Number: OSG1732801

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176776
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG 5/16"x18.00TPI Cut Spiral Flute Mod Bottom 2.5P-3.0P HSSE Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <30HRC Steel, Stainless Steel
Coating Steam Oxide
Overall Length 2.7200 69.09MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/16"
Thread Limit H3/GH3
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Tap Square 0.2380
Tap Chamfer 2.5P-3.0P
