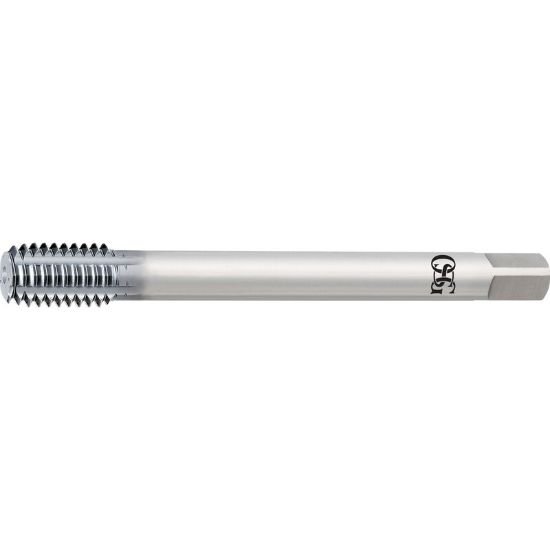

Picture of OSG 1635008255 M8-1.25mm Roll Form Mod Bottom 2.5P HSS-CO TiCN

OSG 1635008255 M8-1.25mm Roll Form Mod Bottom 2.5P HSS-CO TiCN

Part Number: OSG1635008255

Need Assistance or Service? Please call 262-251-4020

Manufacturer: OSG
SKU: 1176762
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
OSG M8x1.25MM Roll Form Mod Bottom 2.5P HSS-CO TiCN D5 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS-CO
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Coating TICN
Overall Length 3.5433 90.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3177 8.07MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 1.25MM
Thread Type METRIC
Thread Size M8
Thread Limit D5
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Tap Square 0.2380
Tap Chamfer 2.5P
