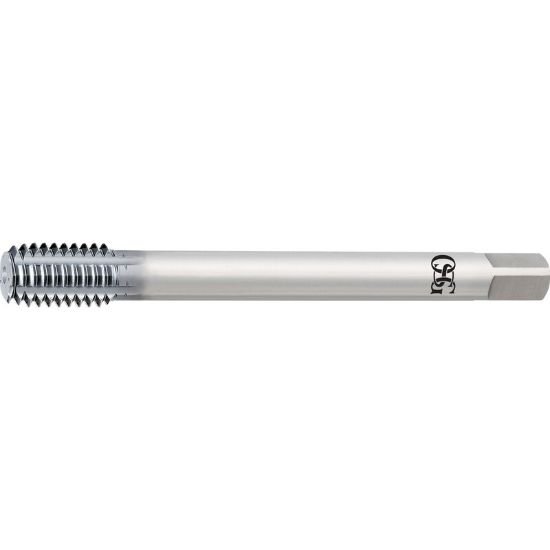

Picture of OSG 1625012118 1/2-13.00TPI Roll Form Bottoming 1.5P HSS-CO TiCN

OSG 1625012118 1/2-13.00TPI Roll Form Bottoming 1.5P HSS-CO TiCN

Part Number: OSG1625012118
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1177013

Description

OSG 1/2"x13.00TPI Roll Form Bottoming 1.5P HSS-CO TiCN H8/GH8 NC/UNC Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P
Dimensions & Sizing
Overall Length 4.3310 110.01MM
Shank/Pilot Dia 0.3670 9.32MM
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.2740
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H8/GH8
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
