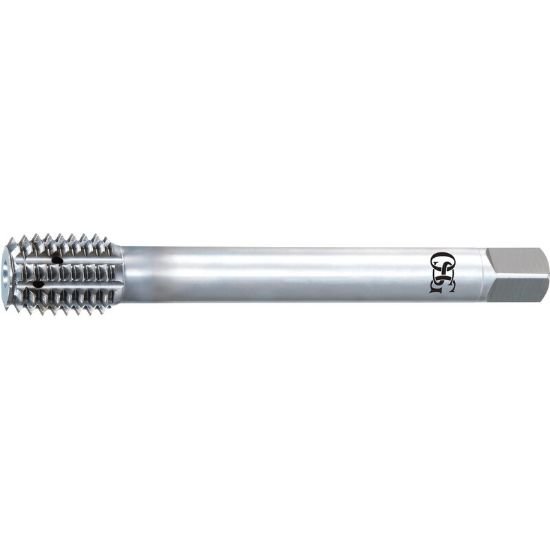

Picture of OSG 1615024309 M24-3.00mm Roll Form Mod Bottom 2.5P HSS-CO TiCN

OSG 1615024309 M24-3.00mm Roll Form Mod Bottom 2.5P HSS-CO TiCN

Part Number: OSG1615024309
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M24 × 3.00MM Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176750
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG M24x3.00MM Roll Form Mod Bottom 2.5P HSS-CO TiCN D9 Metric Steel Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Thru Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 6.2992 160.00MM
Shank/Pilot Dia 0.7598 19.30MM
Thread Pitch 3.00MM
Thread Size M24
Tap Drill Range 0.8886 22.57MM - 0.8965 22.77MM
Tap Square 0.5700
Performance & Capacity
Cut Rating Stainless Steel, <42HRC Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D9
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TICN
Standards & Identification
Dimension Standard ANSI/ANSI
