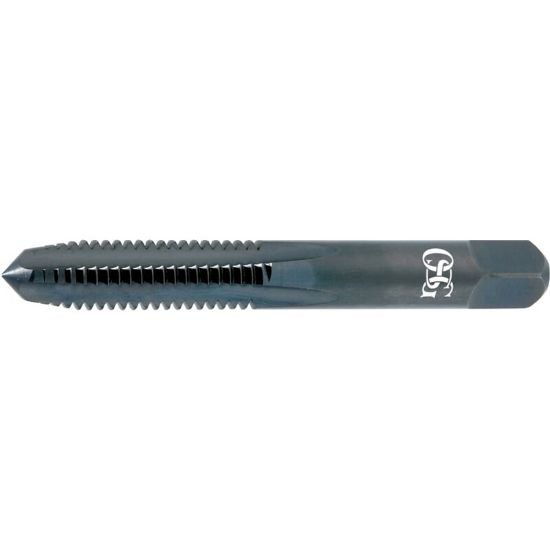

Picture of OSG 1602907 1/2-13.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Nitride + Steam Oxide

OSG 1602907 1/2-13.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Nitride + Steam Oxide

Part Number: OSG1602907
Looking for alternatives…
Find a drill for this tap 1/2" × 13.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1177008
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG 1/2"x13.00TPI Cut Spiral Point Plug 3.5P-4.5P HSS Nitride + Steam Oxide H5/GH5 NC/UNC Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 3.5P-4.5P
Dimensions & Sizing
Overall Length 3.3750 85.73MM
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 4
Thread Pitch 13.00TPI
Thread Size 1/2"
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.2750
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H5/GH5
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
