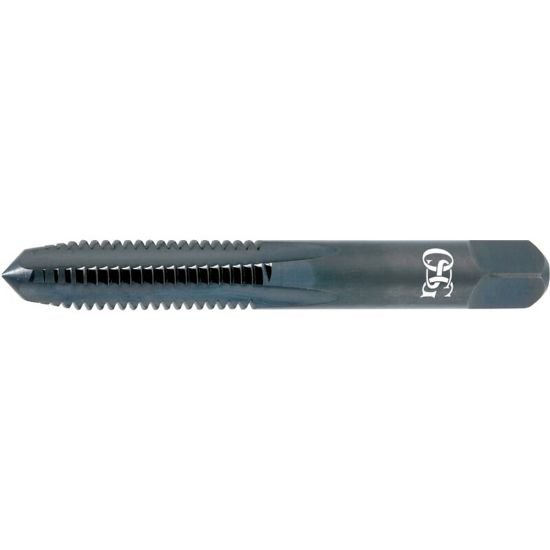

Picture of OSG 1595100 No.10-32.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated

OSG 1595100 No.10-32.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated

Part Number: OSG1595100
Looking for alternatives…
Find a drill for this tap No.10 × 32.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1177007
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG No.10x32.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated GH11 +0.005" NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Over Sized Plug
Tap Type Plug
Tap Chamfer 3.5P-4.5P
Dimensions & Sizing
Overall Length 2.3750 60.33MM
Shank/Pilot Dia 0.1940 4.93MM
Flutes/Inserts 4
Thread Pitch 32.00TPI
Thread Size No.10
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1510
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit GH11 +0.005"
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
