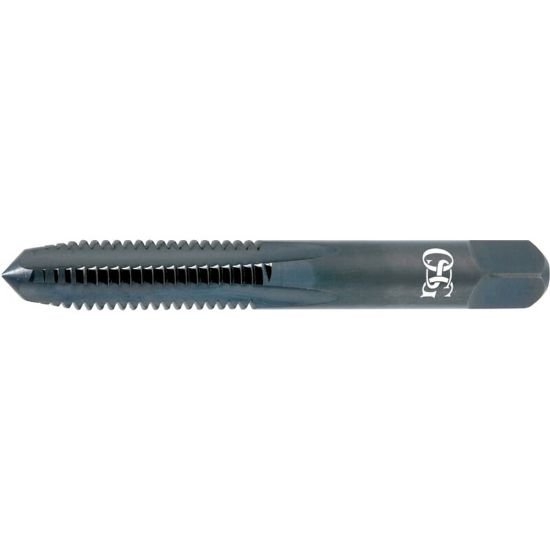

Picture of OSG 1591100 5/16-24.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated

OSG 1591100 5/16-24.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated

Part Number: OSG1591100
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176914

Description

OSG 5/16"x24.00TPI Over Sized Plug Plug 3.5P-4.5P HSS Uncoated GH11 +0.005" NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Tap Style Over Sized Plug
Tap Type Plug
Tap Chamfer 3.5P-4.5P
Dimensions & Sizing
Overall Length 2.7200 69.09MM
Shank/Pilot Dia 0.3180 8.08MM
Flutes/Inserts 4
Thread Pitch 24.00TPI
Thread Size 5/16"
Tap Drill Range 0.2689 6.83MM - 0.2799 7.11MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit GH11 +0.005"
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
