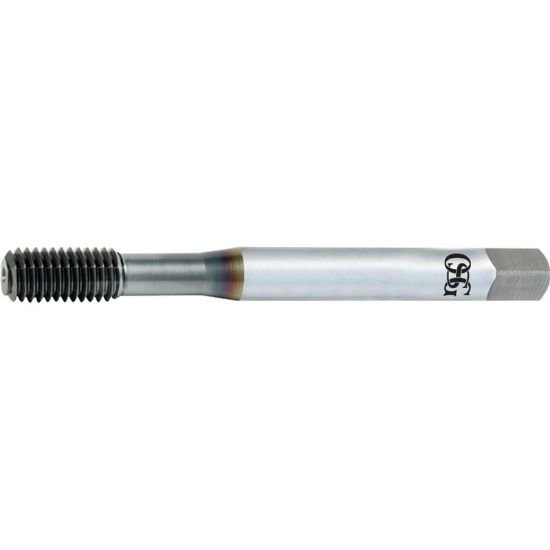

Picture of OSG 1410104805 M10-1.50mm Roll Form Bottoming 1.5P HSS-CO TiN

OSG 1410104805 M10-1.50mm Roll Form Bottoming 1.5P HSS-CO TiN

Part Number: OSG1410104805
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M10 × 1.50MM Roll Form
% of thread 65%
Target drill —
Drill products available across the % thread range
55% 72.5%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±3% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1176730
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

OSG M10x1.50MM Roll Form Bottoming 1.5P HSS-CO TiN D6 Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Tap Style Roll Form
Tap Type Bottoming
Tap Chamfer 1.5P
Dimensions & Sizing
Overall Length 2.9134 74.00MM
Shank/Pilot Dia 0.3810 9.68MM
Thread Pitch 1.50MM
Thread Size M10
Tap Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit D6
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS-CO
Coating TIN
Standards & Identification
Dimension Standard ANSI/ANSI
